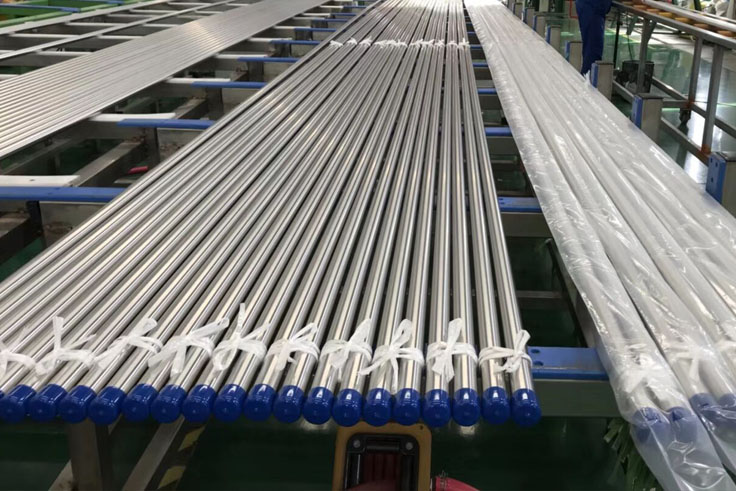

Kanakratna steelage is a renowned exporter, manufacturer, stockist, supplier, and stockholder of high-quality Nickel Alloy Seamless Tubes. These tubes are celebrated for their excellent corrosion resistance, high-temperature strength, and durability, making them ideal for applications in aerospace, chemical processing, power generation, and marine industries. Nickel alloy tubes maintain their mechanical properties across a wide temperature range, ensuring consistent performance in demanding environments. Additionally, they offer superb weldability and ease of fabrication, making them a reliable choice for a variety of critical applications.
Inconel 601 Alloy is actually chromium and nickel-based alloy that is used for those applications that need corrosion and heat resistance. This alloy effectively stands out because of high resistance to greater temperature oxidation and remains to be oxidation resistant at 2200 Deg F. this alloy is developed tight adherent oxide scale that helps in resisting spalling even at the condition of the thermal cycling. Also, the alloy is having good temperature strength and retains the ductility after exposure to longer service life. It is having high resistance ability to aqueous corrosion and haven greater mechanical strength and is formed, welded and machined readily. This alloy property is making it of greater utility in various applications.
A nickel-chromium alloy with an addition of aluminium for outstanding resistance to oxidation and other forms of high-temperature corrosion. It also has high mechanical properties at elevated temperatures. Used for industrial furnaces; heat-treating equipment such as baskets, muffles, and retorts; petrochemical and other process equipment; and gas-turbine components.
Technical Specifications
| CHEMICAL COMPOSITION (% by weight) | ||
|---|---|---|
| Element | Min | Max |
| Ni | 58 | 63 |
| Cr | 21 | 25 |
| AI | 1.0 | 1.7 |
| Mn | - | 1 |
| S | - | 0.015 |
| Cu | - | 0.25 |
| C | - | 1.0 |
| Fe | Balance | |
| Si | - | 0.50 |
| MECHANICAL PROPERTIES | ||
|---|---|---|
| Rupture Strength (1000h) | Solution Annealed | |
| ksi | MPa | |
| 1200°F / 650°C | 28.0 | 195 |
| 1400°F / 760°C | 9.1 | 63 |
| 1600°F / 870°C | 4.3 | 30 |
| 1800°F / 980°C | 2.1 | 14 |
| 2000°F / 1095°C | 1.0 | 7 |
| PHYSICAL PROPERTIES (Room Temperature) | ||||
|---|---|---|---|---|
| Melting Range | 2480 – 2571 | °F | 1360 – 1411 | °C |
| Specific Heat | 0.107 | Btu/lb•°F | 448 | J/kg•°C |
| Curie Temperature | < -320 | °F | < -196 | °C |
| Permeability | 1.003 | at 200 Oersted (15.9 kA/m). | ||
| Coefficient of Expansion | 7.60 | 70 – 200°F, 10-6 in/in•°F | 13.75 | 20 – 100°C, µm/m•°C |
| Thermal Conductivity | 78 | Btu • in/ft2 •h•°F | 11.2 | W/m • °C |
| Electrical Resistivity | 717 | ohm • circ mil/ft | 1.19 | µΩ•m |
| Density | 0.293 | Ib/in3 | 8.11 | g/cm3 |
