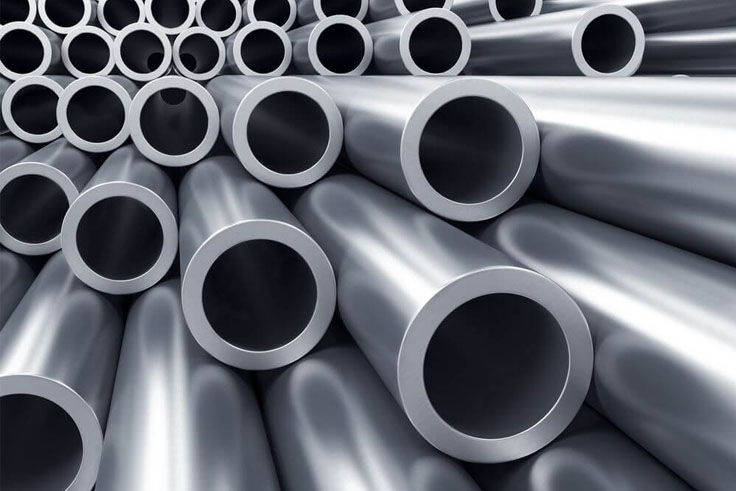

Kanakratna steelage is a renowned exporter, manufacturer, stockist, supplier, and stockholder of high-quality Stainless Steel Alloy Seamless Tubes. These tubes are celebrated for their excellent corrosion resistance, durability, and high strength, making them ideal for a wide range of applications including petrochemical, pharmaceutical, food processing, and marine industries. Stainless steel alloy tubes maintain their integrity and performance across various temperature ranges and environments, offering superior weldability and ease of fabrication. This ensures reliable and long-lasting performance in even the most challenging conditions.
6 Mo (UNS S31254) is a super austenitic stainless steel with a high level of molybdenum and nitrogen, providing high resistance to pitting and crevice corrosion as well as high strength compared with conventional austenitic stainless steels such as 316L.
The alloy can provide excellent resistance to stress corrosion cracking allowing tube cold formingand may be used without the necessity to re-anneal at testing up to 120°C.
Technical Specifications
| CHEMICAL COMPOSITION (% by weight) | ||
|---|---|---|
| Element | Min | |
| C | <0.02 | |
| Si | 0.70 | |
| Mn | 1 | |
| P | 0.03 | |
| S | 0.010 | |
| Cr | 20 | |
| Ni | 18 | |
| Mo | 6.1 | |
| Cu | 0.75 | |
| N | 0.20 | |
| MECHANICAL PROPERTIES | ||
|---|---|---|
| Temper | Annealed | |
| Tensile Rm | 98 | ksi (min) |
| Tensile Rm | 675 | MPa (min) |
| R.p. 0.2% Yield | 45 | ksi (min) |
| R.p. 0.2% Yield | 310 | MPa (min) |
| Elongation (2” or 4D gl) | 35 | % (min) |
| PHYSICAL PROPERTIES (Room Temperature) | ||
|---|---|---|
| Specific Heat (0-100°C) | 500 | J.kg-1.°K-1 |
| Thermal Conductivity | 14 | W.m -1.°K-1 |
| Thermal Expansion | 16.5 | mm/m/°C |
| Modulus Elasticity | 196 | GPa |
| Electrical Resistivity | 8.5 | Ohm-cm |
| Density | 8.00 | g/cm3 |
